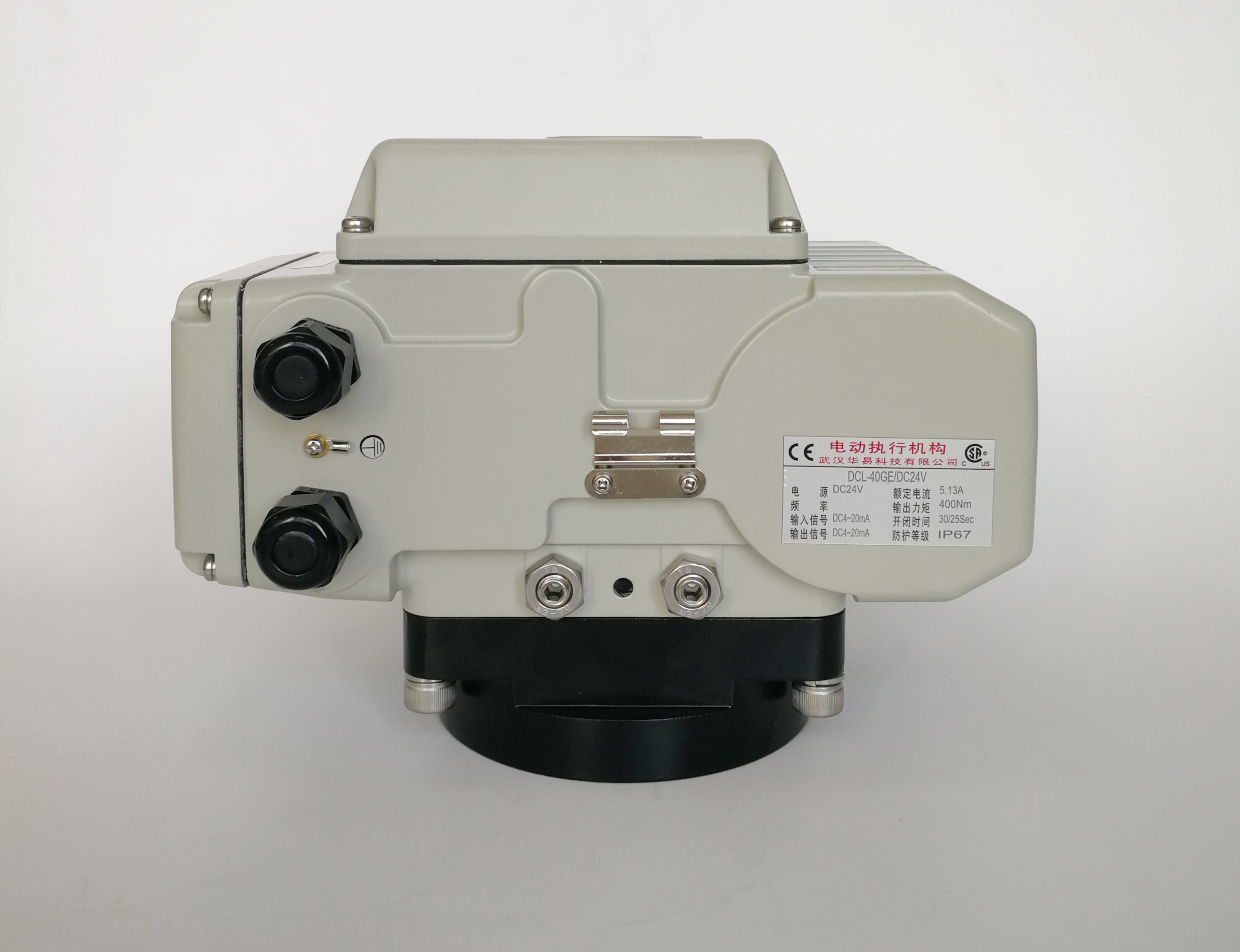

IP67 CE Modulating DC24V Brushless Quarter Turn Electric Actuator

DCL-10GE 40GE dimension and parameters.pdf

• Torque can be precisely setting within a certain range
• Heavy duty DC brushless motor low temperature rising, longer life, provide high start torque and very small inertia force
• Torque test control and over torque protection by current
• Compact smart resin plastic packaged proportional servo controller installed
• IP 67 robust aluminum alloy enclosure, protection against dust and water
• Manual override
• ISO5211 direct installation
• UL standard/CSA listed/CE marked/RoHS 3 complied

The DCL-10GE/40GE is powered by 24VDC and proportionally controlled by a 4-20mA or 2-10V input signal. The integrated DC brushless motor offers significant advantages for actuator applications. Thanks to its permanent magnet rotor, the motor’s temperature rise is 20℃ lower than that of a standard AC motor, ensuring minimal heat generation even during frequent start-ups. Designed with high start-up torque and strong overload capacity, the actuator can sustain up to 1,200 operations per hour.

Furthermore, the DC brushless motor operates without mechanical friction and features reverse electromagnetic braking. To improve positioning accuracy (with an error margin of less than ±1%) and reduce vibration, the motor automatically decelerates as it approaches the target setpoint.

In the event of a jammed valve requiring higher-than-normal torque, the GE-series actuator employs an intelligent recovery function: it will automatically reverse slightly, then rotate forward at a lower speed and higher torque to push past the obstruction until the valve moves smoothly at normal operational speed.
