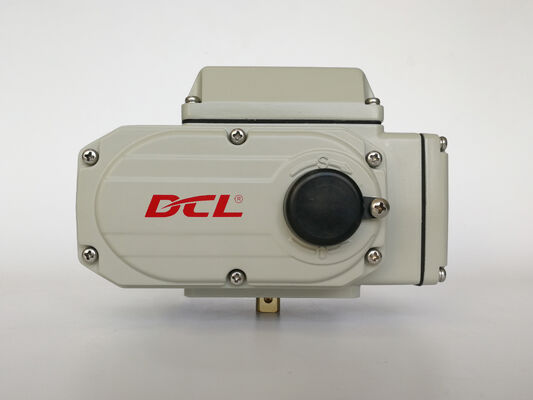

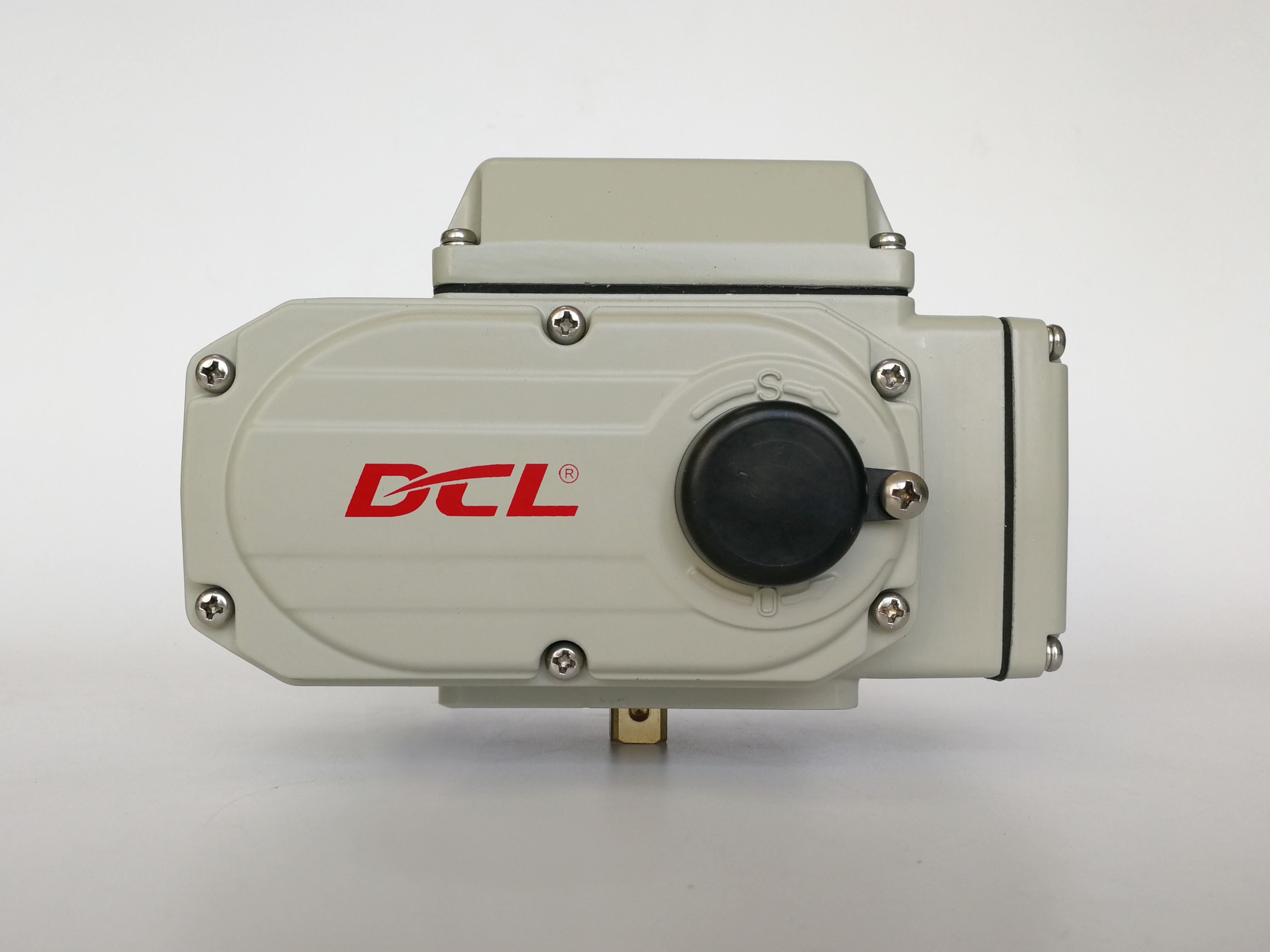

Ball Valve CE CSA 45S 600Nm Quarter Turn Electric Actuator

Non-ventilated reversible induction type motor equipped compact actuator

Features

• 1/4 turn operation with mechanical limits
• Automate ball valve and butterfly valve to adjust or cut off flow
• All bronze alloy worm sector gear is very durable and resistance to high force friction
• Over 10000 time full open and close life cycles with full rated load with duty rate 80%
• Compact size for limit space with weather proof IP67/type 4X aluminum alloy housing
• Corrosion protection robust aluminum alloy with thermally bonded polyester coating
• All metal gear train with self-locking worm gear
• Visual valve position indicator
• Two electric limit switches to confirm valve position, no additional brake required
• Allen handle manual override
• CSA listed/UL complied/CE marked/RoHS 3.0 tested

Description

DCL compact electric actuators are widely utilized in the HVAC sector, particularly for butterfly valve automation. In building automation systems (BAS), these actuators are essential for regulating indoor temperature, air volume, water flow, condensate discharge, and hydraulic balance.

Powered by heavy-duty motors with an 80% duty cycle, DCL actuators support high-frequency modulation to achieve superior temperature precision. Their extended operational lifespan significantly minimizes after-sales maintenance and long-term costs. Engineered for versatility, they are suitable for both indoor and outdoor installations, even in severe environments. An optional anti-condensation heater is available to protect internal components from moisture damage. All DCL HVAC actuators are rigorously tested to meet UL and CSA standards (certified by CSA) and are CE and RoHS compliant (tested by SGS).

Specification
